Caterpillar Inc. owns a complex portfolio of brands whose roles and relationships support the growth to achieve our enterprise goals.

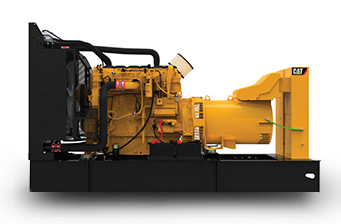

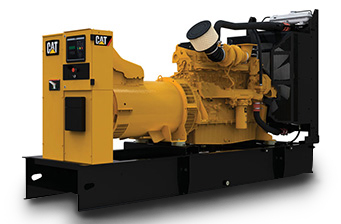

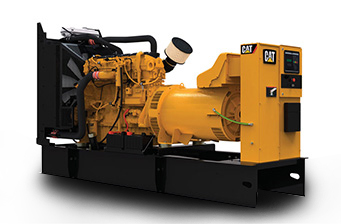

CATTM diesel engine, field-proven in thousands of applications worldwide, reliable, rugged, durable design. CATTM alternator, matched to the performance and output characteristics of Cat engines, industry leading mechanical and electrical design, industry leading motor starting capabilities, and also with high efficiency. CATTM generator sets accepts100% rated load in one step per NFPA 110 and meet ISO 8528-5 transient response.
Cat Dealers provide extensive post sale support including maintenance and repair agreements. Cat dealers have over 1,800 dealer branch stores operating in 200 countries. The Cat® SOSSM program cost effectively detects internal engine component condition, even the presence of unwanted fluids and combustion by-products.
50HZ
60HZ
Optional
| Model | Prime Power | Standby Power | Engine | Alternator | Spec. | ||
|---|---|---|---|---|---|---|---|
| kVA | kW | kVA | kW | ||||
| DE26E3S | 24 | 24 | 26 | 26 | C3.3 | LCB1514J |
 |
| DE33E0 | 30 | 24 | 33 | 26.4 | C3.3 | LC1514F |
|
| DE33E3 | 30 | 24 | 33 | 26.4 | C3.3 | LC1514F |
|
| DE40E0S | 36 | 36 | 40 | 40 | C3.3 | LCB1514P |
|
| DE40E2S | 36 | 36 | 40 | 40 | C3.3 | LCB1514P |
|
| DE50E0 | 45 | 36 | 50 | 40 | C3.3 | LC1514L |
|
| DE50E0S | 45 | 45 | 50 | 50 | C3.3 | LCB3114D |
|
| DE50E2 | 45 | 36 | 50 | 40 | C3.3 | LC1514L |
|
| DE55E0 | 50 | 40 | 55 | 44 | C3.3 | LC1514N |
|
| DE55E2 | 50 | 40 | 55 | 44 | C4.4 | LC1514N |
|
| DE55E3S | 50 | 50 | 55 | 55 | C4.4 | LCB3114D |
|
| DE65E0 | 60 | 48 | 65 | 52 | C3.3 | LC1514P |
|
| DE65E3 | 60 | 48 | 65 | 52 | C4.4 | LC1514P |
|
| DE88E0 | 80 | 64 | 88 | 70.4 | C4.4 | LC3114D |
|
| DE88E3 | 80 | 64 | 88 | 70.4 | C4.4 | LC3114D |
|
| DE90E2S | 82 | 82 | 90 | 90 | C4.4 | LCB3114H |
|
| DE90E3S | 82 | 82 | 90 | 90 | C4.4 | LCB3114H |
|
| DE110E2 | 100 | 80 | 110 | 88 | C4.4 | LC3114F |
|
| DE110E3 | 135 | 80 | 110 | 88 | C4.4 | LC3114F |
|
| DE150E0 | 135 | 108 | 150 | 120 | C7.1 | LC3114H |
|
| DE165E0 | 150 | 120 | 165 | 132 | C7.1 | LC3114J |
|
| DE200E0 | 180 | 144 | 200 | 160 | C7.1 | LC5014D |
|
| DE220E0 | 200 | 160 | 218 | 174.4 | C7.1 | LC5014F |
|
| R-3406C-220 | 275 | 220 | / | / | 3406C | LC5014J |
|
| R-3406C-256 | 320 | 256 | / | / | 3406C | LC6114B |
|
| R-C13-280 | 350 | 280 | / | / | C13 | LC6114B |
|
| R-C13-320 | 400 | 320 | / | / | C13 | LC6114C |
|
| R-C15-364 | 455 | 364 | / | / | C15 | LC6114D |
|
| R-C15-400 | 500 | 400 | / | / | C15 | LC6114F |
|
| R-C18-440 | 550 | 440 | / | / | C18 | LC7024F |
|
| R-C18-480 | 600 | 480 | / | / | C18 | LC7024F |
|
| R-C18-508 | 635 | 508 | / | / | C18 | LC7024H |
|
| Model | Prime Power | Standby Power | Engine | Alternator | Spec. | ||
|---|---|---|---|---|---|---|---|
| kVA | kW | kVA | kW | ||||
| DE33E0 | 33.8 | 27 | 37.5 | 30 | C3.3 | LC1514F |
|
| DE50E0 | 50 | 40 | 56.3 | 45 | C3.3 | LC1514L |
|
| DE55E0 | 56.3 | 45 | 62.5 | 50 | C3.3 | LC1514N |
|
| DE65E0 | 68.8 | 55 | 75 | 60 | C3.3 | LC1514P |
|
| DE88E0 | 90 | 72 | 100 | 80 | C4.4 | LC3114D |
|
| DE110E2 | 113 | 90.4 | 125 | 100 | C4.4 | LC3114F |
|
| DE165E0 | 168.8 | 135 | 187.5 | 150 | C7.1 | LC3114J |
|
| R-3406C-320 | 400 | 320 | / | / | 3406C | LC6114B |
|
| R-C13-320 | 400 | 320 | / | / | C13 | LC6114B |
|
| R-C13-350 | 437.5 | 350 | / | / | C13 | LC6114B |
|
| R-3406C-365 | 456 | 365 | / | / | 3406C | LC6114D |
|
| R-C15-365 | 456 | 365 | / | / | C15 | LC6114B |
|
| R-C15-410 | 513 | 410 | / | / | C15 | LC6114D |
|
| R-C15-455 | 569 | 455 | / | / | C15 | LC6114F |
|
| R-C18-500 | 625 | 500 | / | / | C18 | LC7024F |
|
| R-C18-545 | 681 | 545 | / | / | C18 | LC7024F |
|
| Model | Prime Power | Standby Power | Engine | Alternator | Spec. | ||
|---|---|---|---|---|---|---|---|
| kVA | kW | kVA | kW | ||||
| Model | Prime Power | Standby Power | Engine | Alternator | Spec. | ||
|---|---|---|---|---|---|---|---|
| kVA | kW | kVA | kW | ||||
